Description
Heavy-duty Swiss rebound hammer / Easy to use and built to last
PCE-HT-225A is a heavy-duty concrete hardness tester or concrete test hammer, also called a concrete rebound hammer or Swiss hammer, used to measure surface hardness and material compression strength. Suitable for use with concrete, rock and building materials, this rugged, manufacturer-calibrated rebound hammer is both easy to use and built to last.
The quality of concrete is judged mainly on the basis of compressive strength, since compressive strength is directly responsible for the structural behavior and durability of concrete constructions. The compressive strength is designated by a sequence of letters and numbers. For example, “B 25” is considered normal concrete with a compressive strength of 220 kg / cm² or 3100 psi. There are many intermediate values up to the highest strength class of “B 55.” Thus, using this concrete hardness tester, you can quickly, easily and accurately classify concrete strength.

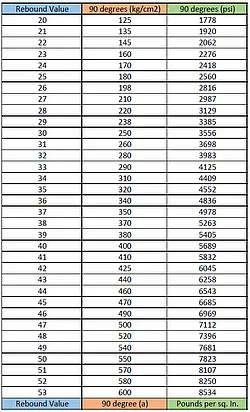

For psi concrete measurement, download the chart to convert rebound value to psi. Optional test anvil to verify accuracy listed under accessories.
– Employs mechanical rebound test method – no digital components
– Kg/cm², psi, and MPa conversion tables on back of instrument and in user manual
– Manufacturer calibrated – ISO calibration certificate available as an option (see accessories)
– Ideal for use in construction, structural engineering and material strength testing
– Includes two-year warranty against manufacturer defects
– Optional test anvil to verify accuracy listed under accessories
